Overview of Diarkis

Diarkis and Modules

Diarkis is a network middleware designed for servers and clients, primarily intended for online multiplayer games.

This middleware comes with SDKs for both the server and client sides. (Server side: Go, Client side: C++ and C#)

For the client side, plugins for Unreal Engine and an SDK for Unity Engine are also available.

Supported Operating Systems

• Linux

• Windows

• MacOS

• iOS

• Android

Supported Platforms:

• PS4, PS5

• Xbox One, Xbox Series X, Xbox Series S

• Nintendo Switch

• Steam

Server Architecture Philosophy

The design of the Diarkis server focuses on decentralization and distribution of servers.

Diarkis servers are engineered to form server clusters that operate as a single server unit. The server is entirely written in Golang.

This design enables server clusters to be fault-tolerant (even if some servers in the cluster fail, the remaining servers in the cluster continue to operate without any effect, requiring game clients to simply reconnect) and horizontally scalable (allowing for simple scaling in or out by adding or removing servers based on user traffic).

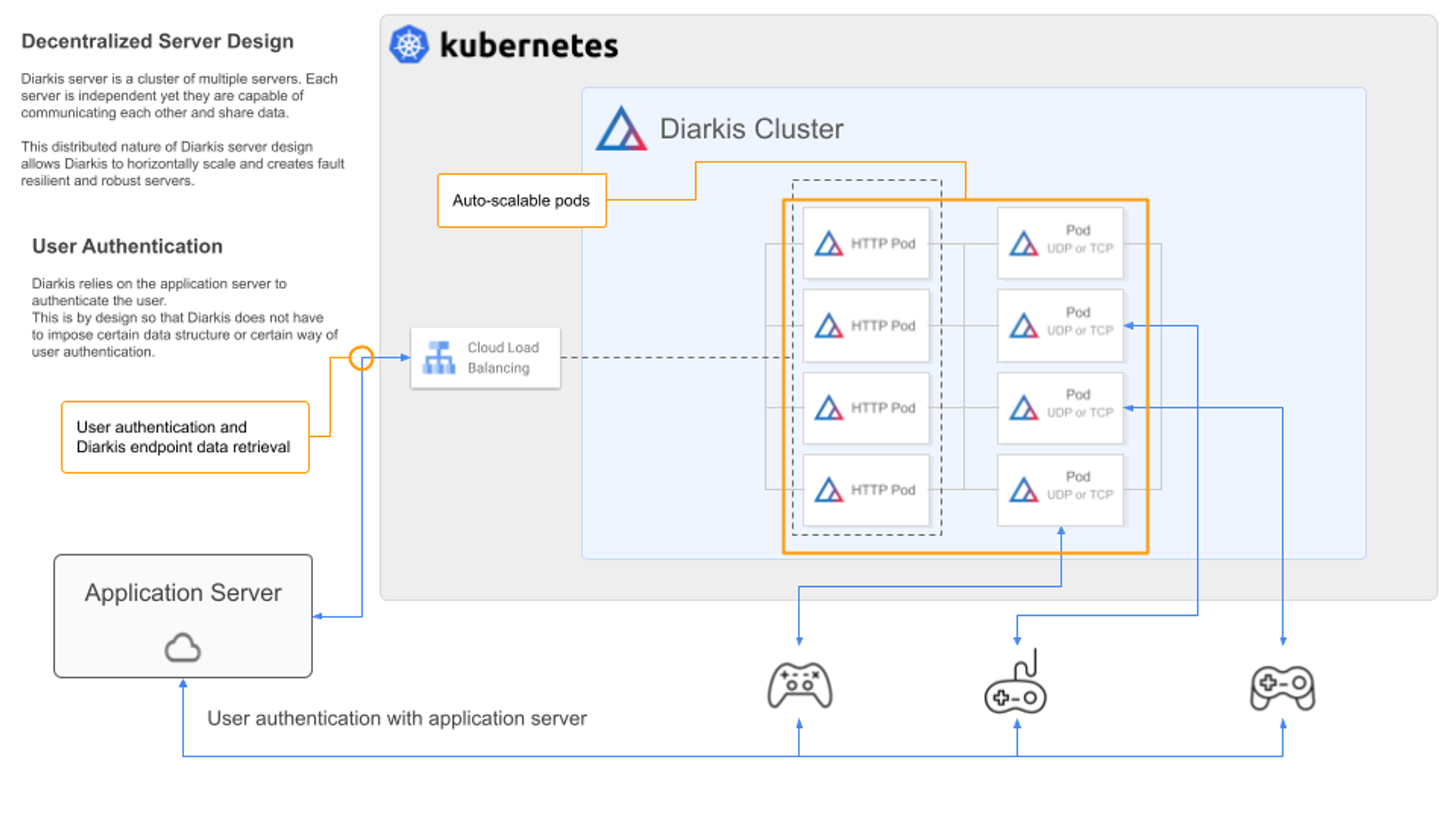

The diagram below illustrates the configuration of a Diarkis server cluster.

1. Pods are servers.

2. All user clients with Diarkis clients communicate directly with UDP or TCP Pods.

3. Diarkis supports both TCP and UDP network protocols.

4. For UDP, Diarkis implements its proprietary RUDP with retransmission, packet order control, and MTU exceed capabilities.

Comparison with Traditional Architectures

There are numerous ways to implement similar network server systems without using Diarkis.

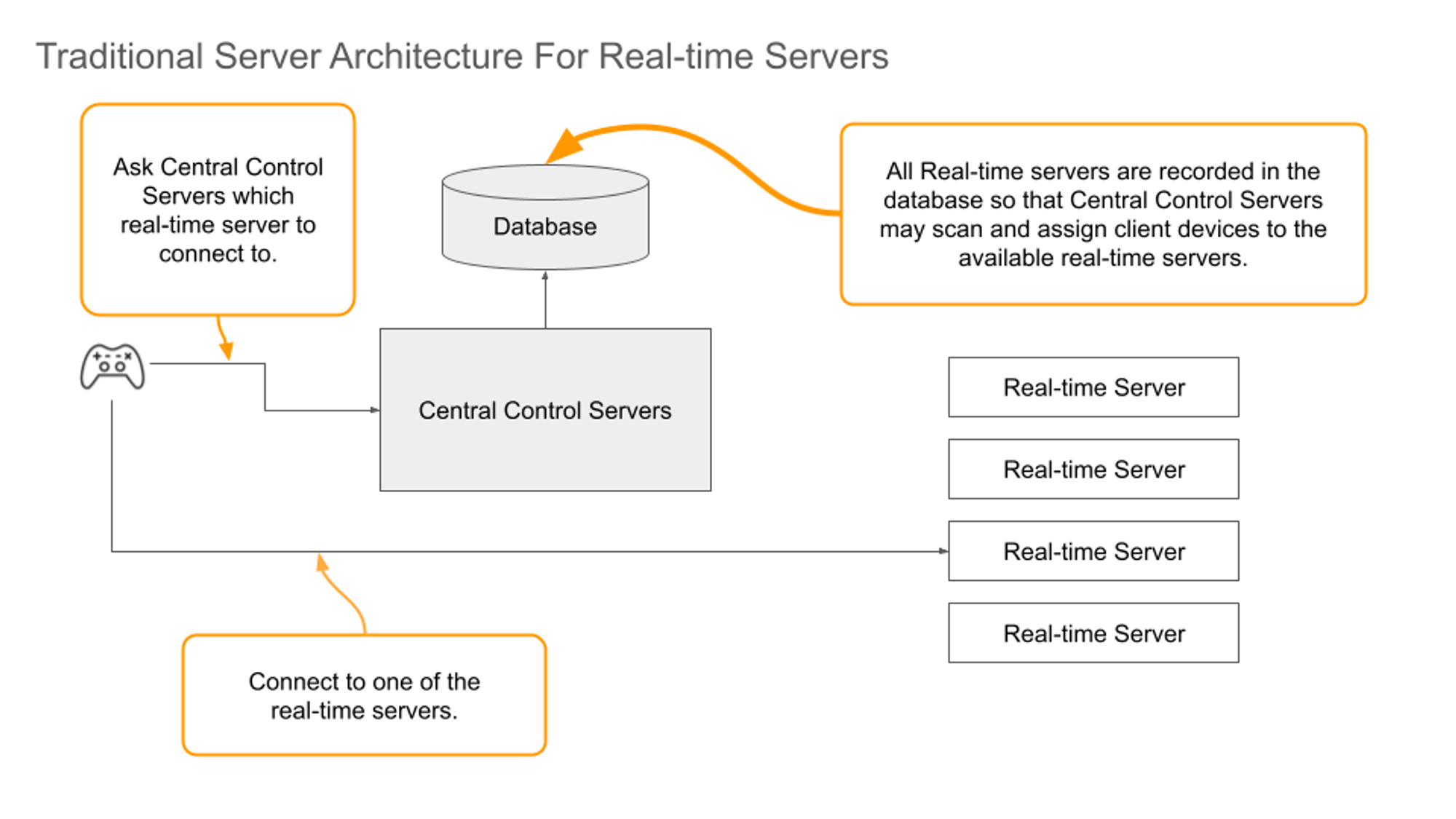

Here, we will look at one of the most common approaches and compare it with Diarkis.

Server Maintenance - Traditional Method

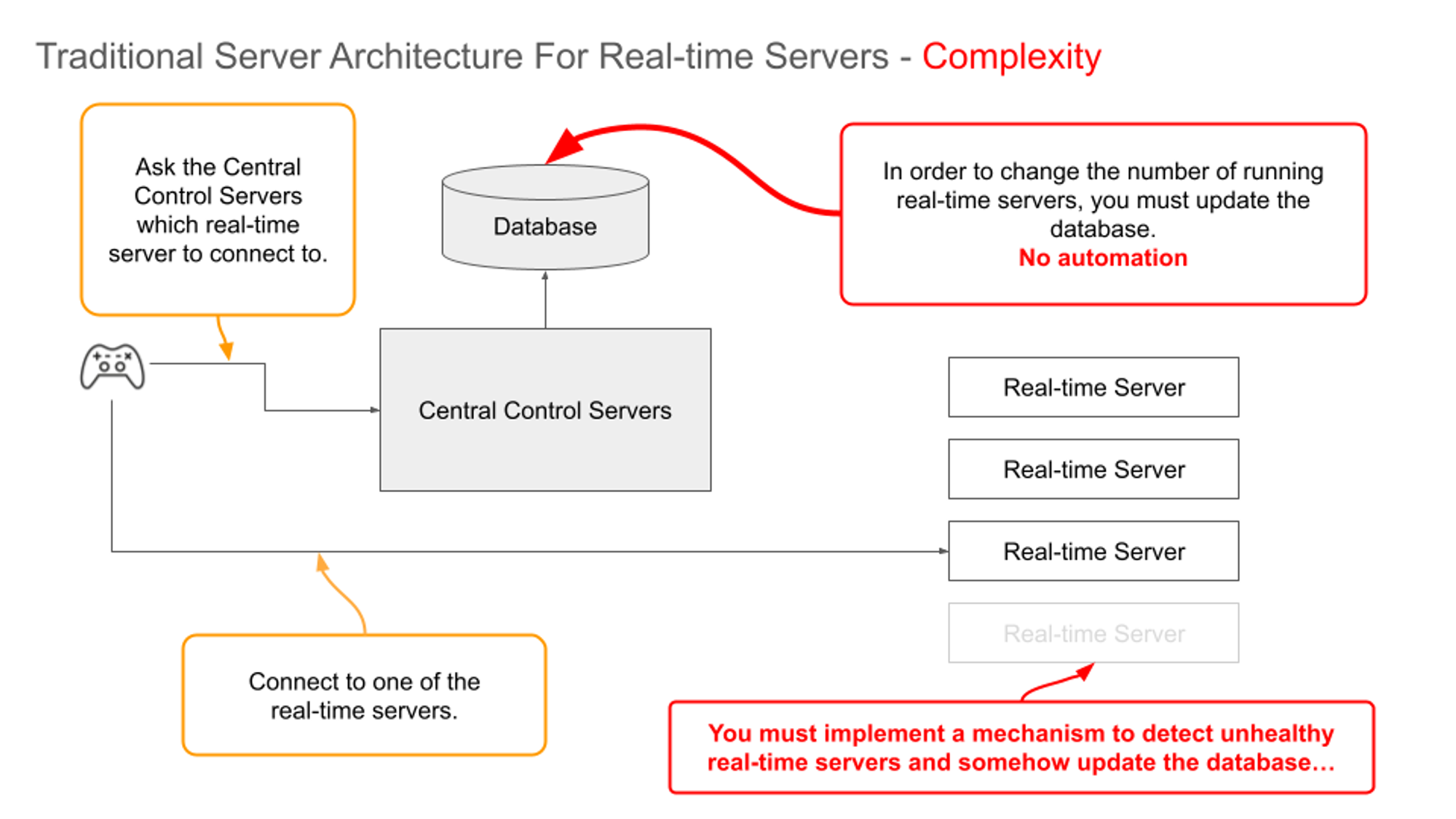

In traditional methods, any changes to the server, such as adding or removing real-time servers, require manual maintenance and modifications. This can lead to human error and other potential issues.

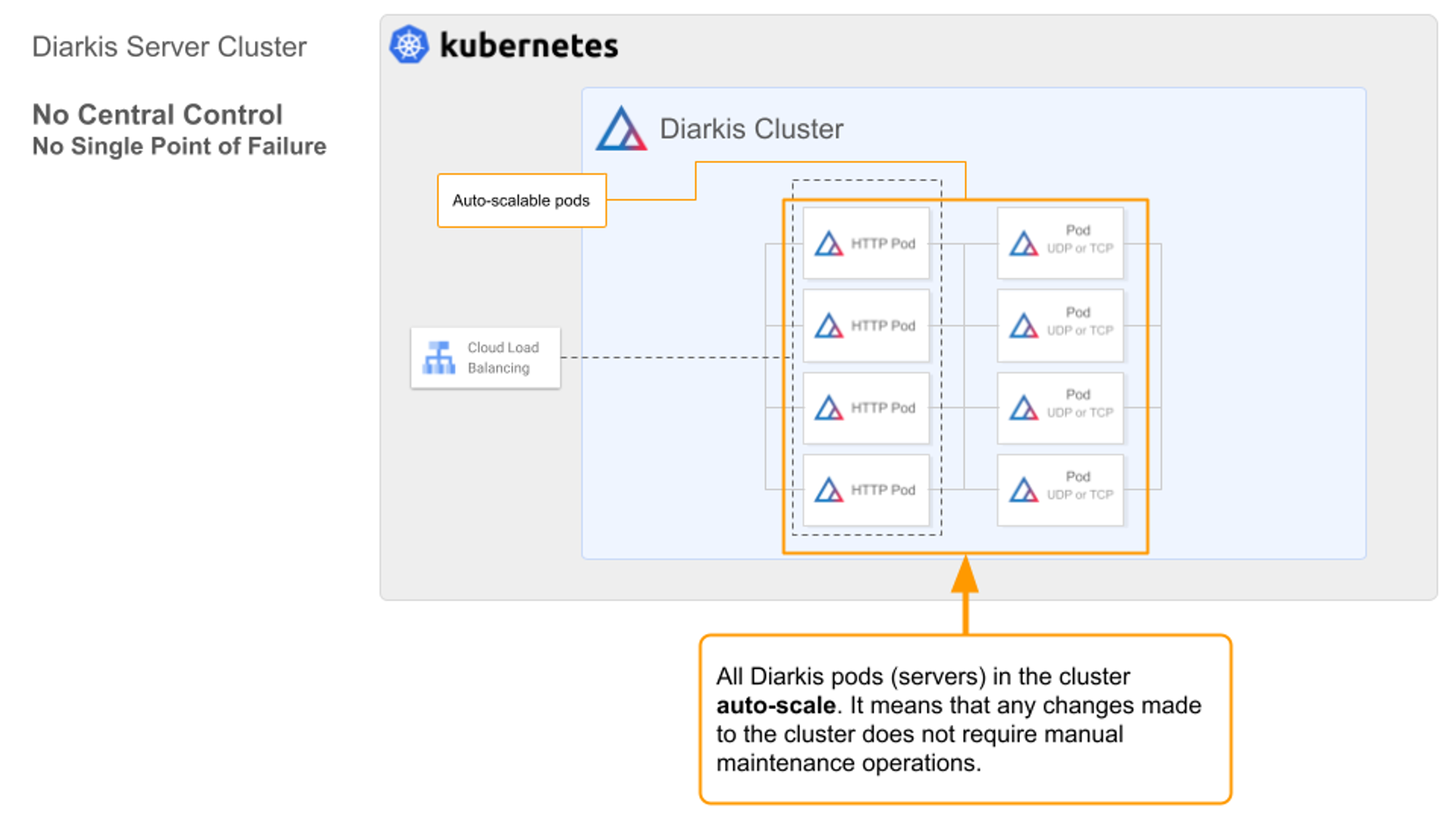

In contrast, Diarkis requires no manual maintenance. Everything is handled automatically.

System-Wide Fault Tolerance

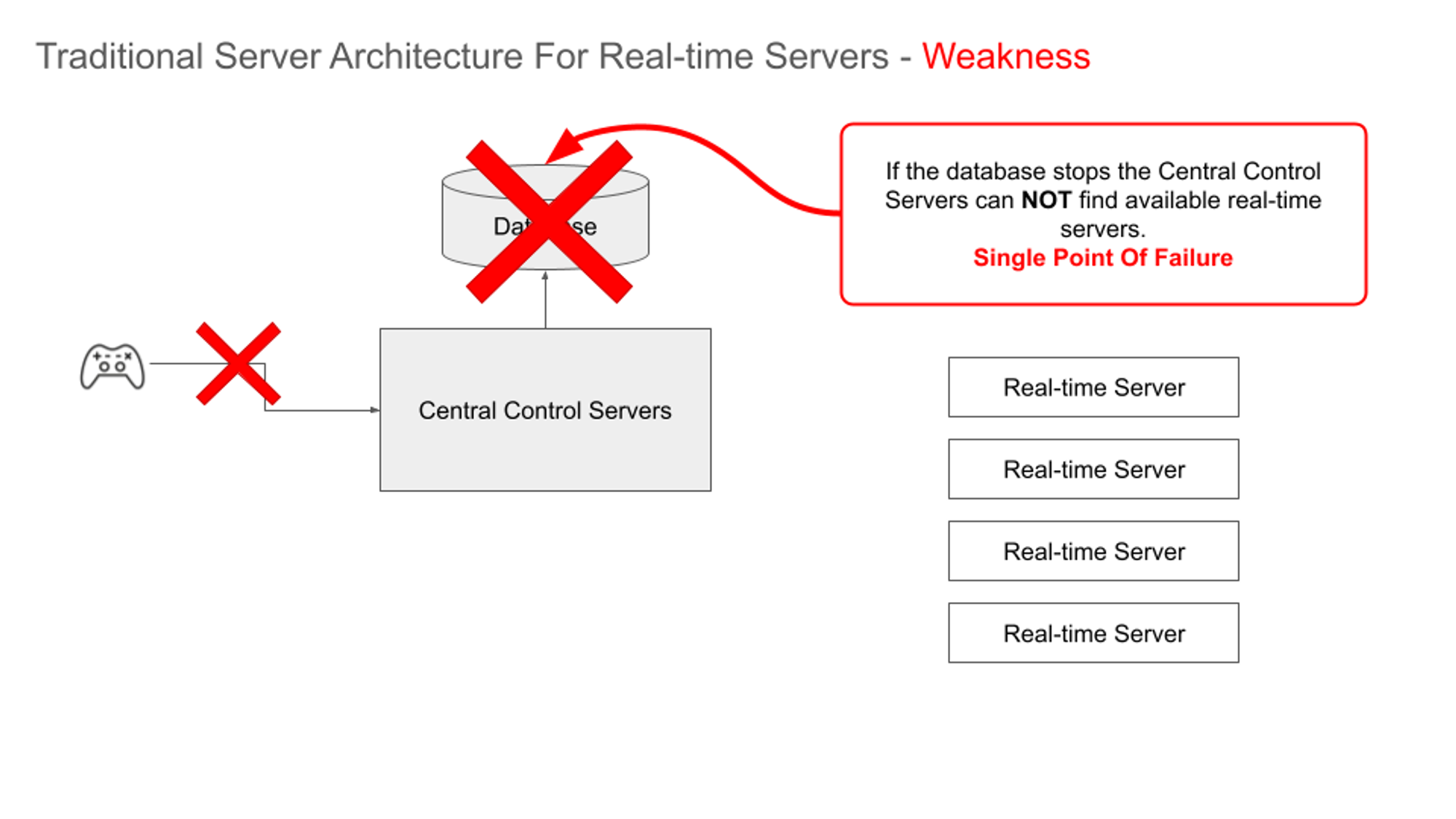

One particularly challenging issue to resolve using traditional methods is the single point of failure for the entire system.

Centralized control is required to manage the entire system. In this case, it would be a database.

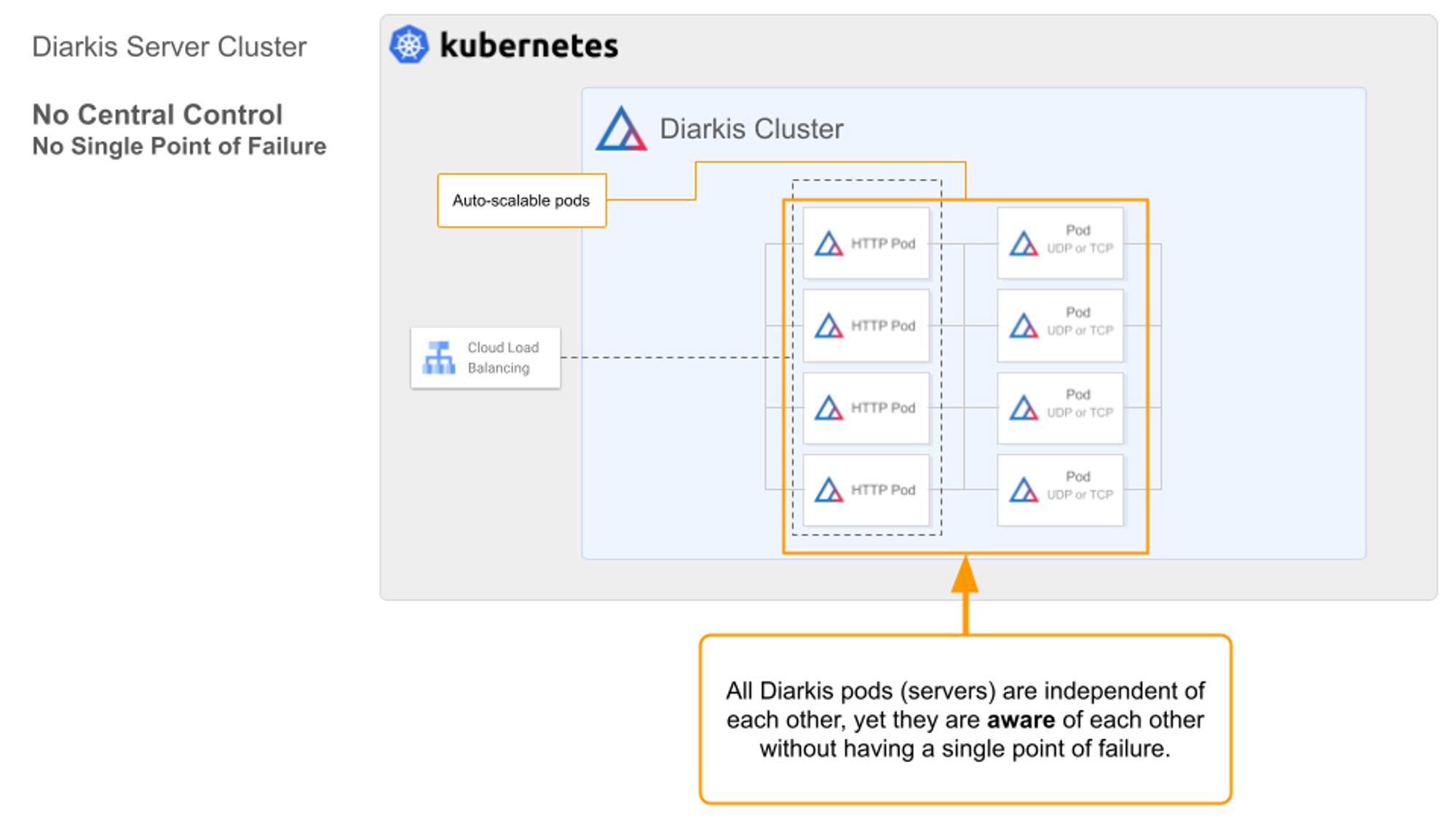

Diarkis server clusters are completely decentralized, with no central control system to manage the whole cluster of Diarkis servers. This effectively eliminates the single point of failure problem for the entire system.

Communication from Client to Server

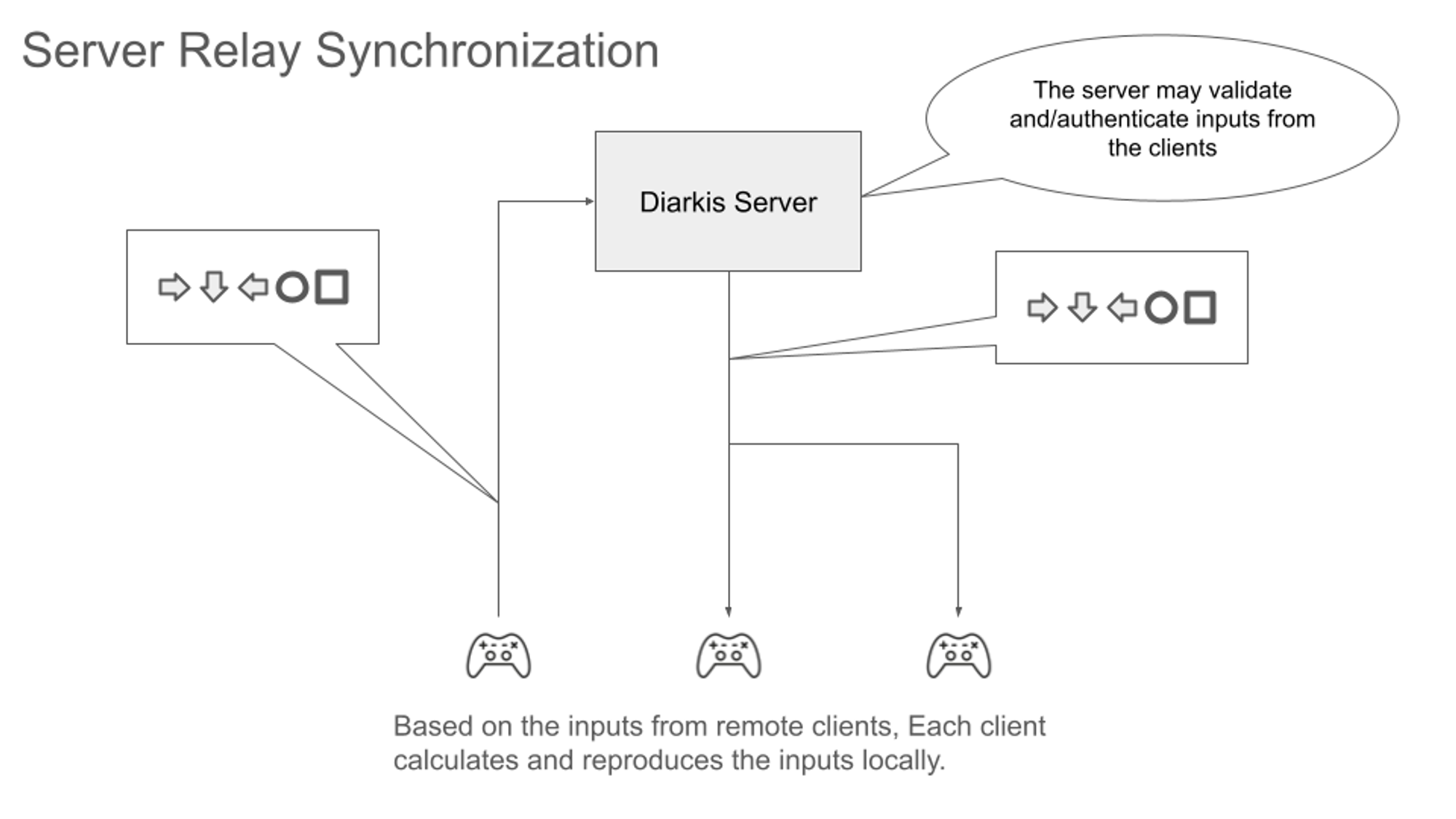

Diarkis primarily uses server relay synchronization with remote clients.

This means the Diarkis server acts as a hub for clients to exchange data.

Client-to-Server Communication

Diarkis primarily uses server relay synchronization with remote clients.

This means the Diarkis server functions as a hub for data exchange between clients.

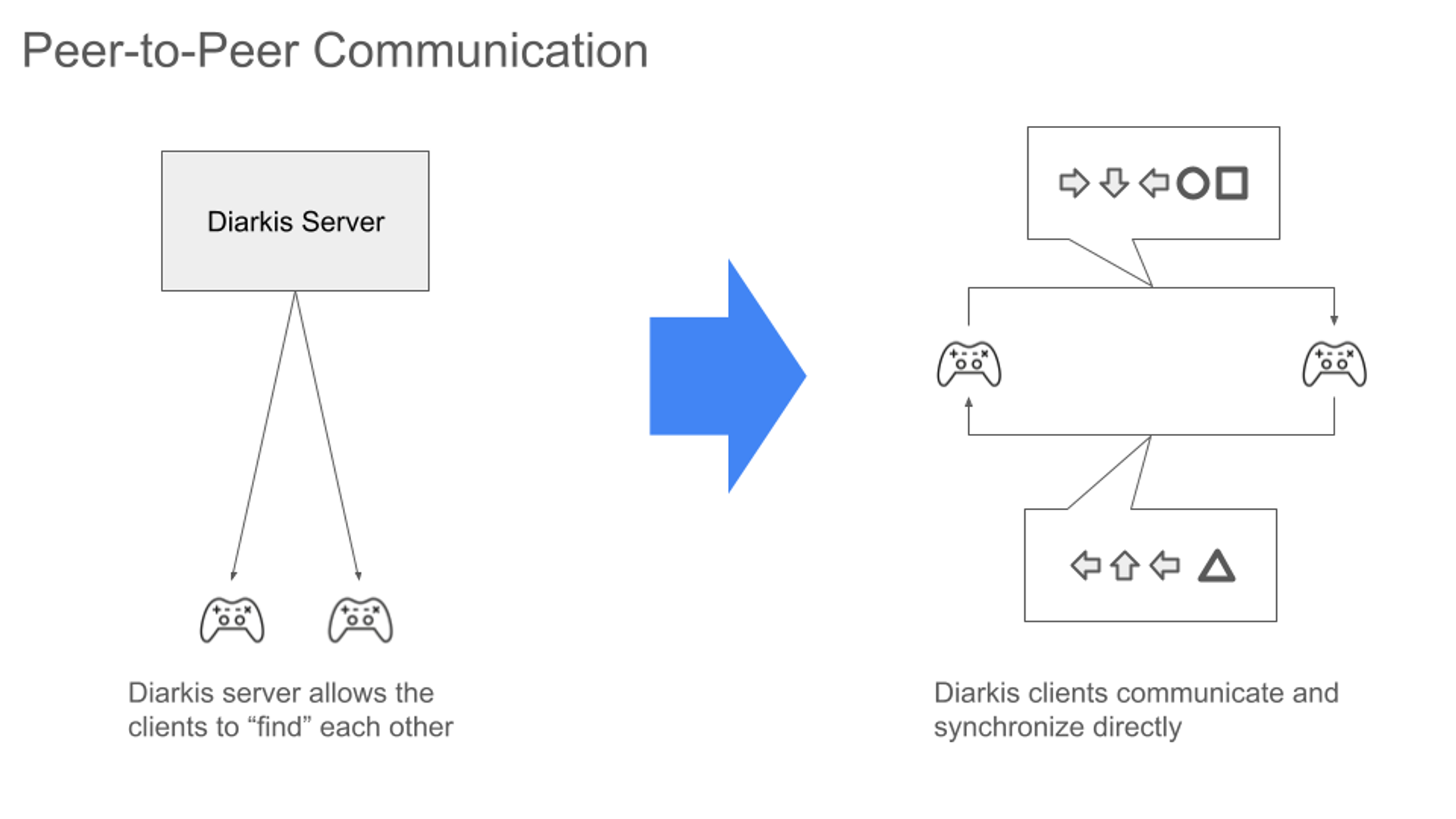

Another synchronization method offered by Diarkis is peer-to-peer (P2P) communication.

Clients send and receive data directly in a peer-to-peer manner. There is no server between clients, like in server relay. Diarkis serves as a discovery point for clients to communicate directly.

Peer-to-peer communication requires two steps. First, clients exchange their addresses and perform hole punching. Once hole punching is successful, clients can send and receive packets directly.

Diarkis Client SDK

The Diarkis client is written in C++. There is also a C# interface available. The client SDK includes plugins for Unreal Engine and Unity Engine.

Diarkis Modules

Diarkis includes built-in modules that game developers can utilize.

• Room Module
• MatchMaker Module
• Field Module
• P2P (peer-to-peer) Module
• DM (Direct Message) Module
• Notifier Module
• Session Module
• Group Module
